Diaphragm Pump Priming

EDP-DP-20

Technical specs

Suction Connection 600 mm / 24 inch Delivery Connection 500 mm / 20 inch Solid Handling 100 mm / 4 inch Max. Head / Max. Flow 60 mtr / 3500 m3/hr Engine Bell Housing SAE3 / SAE1 Max. Impeller Diameter 610 mm Max. Working Pressure 6 bar Priming 120 CFM / 800 RPM Best Efficiency Point Head and Flow 40 mtr / 2500 m3/hr

View Details Get Quote

Diaphragm Pump Priming

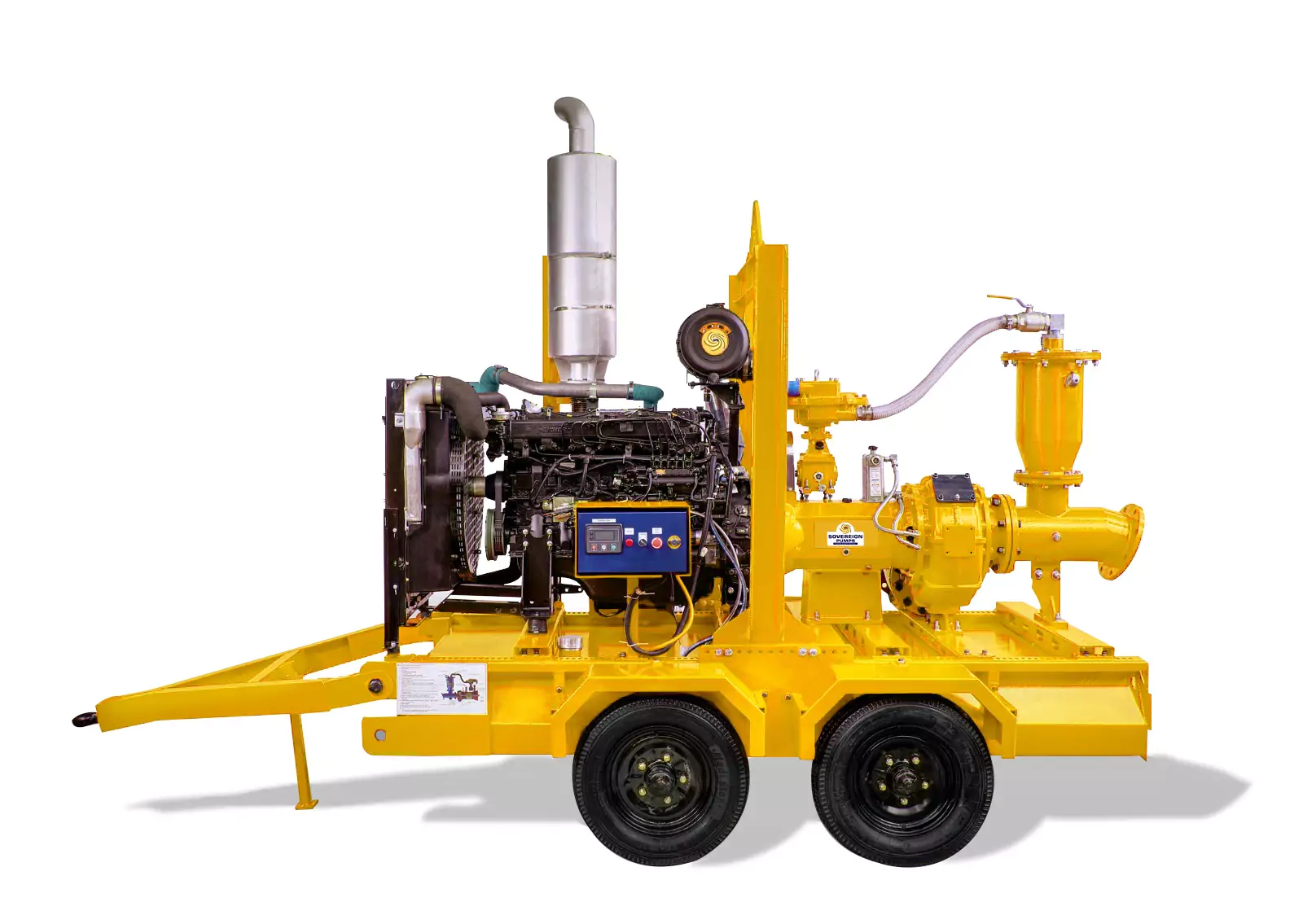

EDP-DP-16

Technical specs

Suction Connection 450 mm / 18 inch Delivery Connection 400 mm / 16 inch Solid Handling 125 mm / 5 inch Max. Head / Max. Flow 44 mtr / 2200 m3/hr Engine Bell Housing SAE3 / SAE1 Max. Impeller Diameter 500 mm Max. Working Pressure 5 bar Priming 120 CFM / 800 RPM Best Efficiency Point Head and Flow 28 mtr / 1500 m3/hr

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-12

Technical specs

Suction Connection 300 mm / 12 inch Delivery Connection 300 mm / 12 inch Solid Handling 100 mm / 4 inch Max. Head / Max. Flow 62 mtr / 1400 m3/hr Engine Bell Housing SAE3 / SAE1 Engine Fly Wheel 10 inch / 14 inch Max. Impeller Diameter 359 mm Priming 120 CFM / 800 RPM Best Efficiency Point Head and Flow 42 mtr / 1000 m3/hr

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-10

Technical specs

Suction Connection 250 mm / 10 inch Delivery Connection 250 mm / 10 inch Solid Handling 75 mm / 3 inch Max. Head / Max. Flow 55 mtr / 850 m3/hr Engine Bell Housing SAE3 / SAE1 Engine Fly Wheel 10 inch / 14 inch Max. Impeller Diameter 295 mm Priming 60 - 120 CFM / 800 RPM Best Efficiency Point Head and Flow 30 mtr / 620 m3/hr

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-8

Technical specs

Suction Connection 200 mm / 8 inch Delivery Connection 200 mm / 8 inch Solid Handling 75 mm / 3 inch Max. Head / Max. Flow 55 mtr / 800 m3/hr Engine Bell Housing SAE3 / SAE1 Engine Fly Wheel 10 inch / 14 inch Shaft Diameter 70 mm Max. Impeller Diameter 295 mm Priming 60 CFM / 800 RPM Best Efficiency Point Head and Flow 38 mtr / 550 m3/hr

View Details Get Quote

Diaphragm Pump Priming

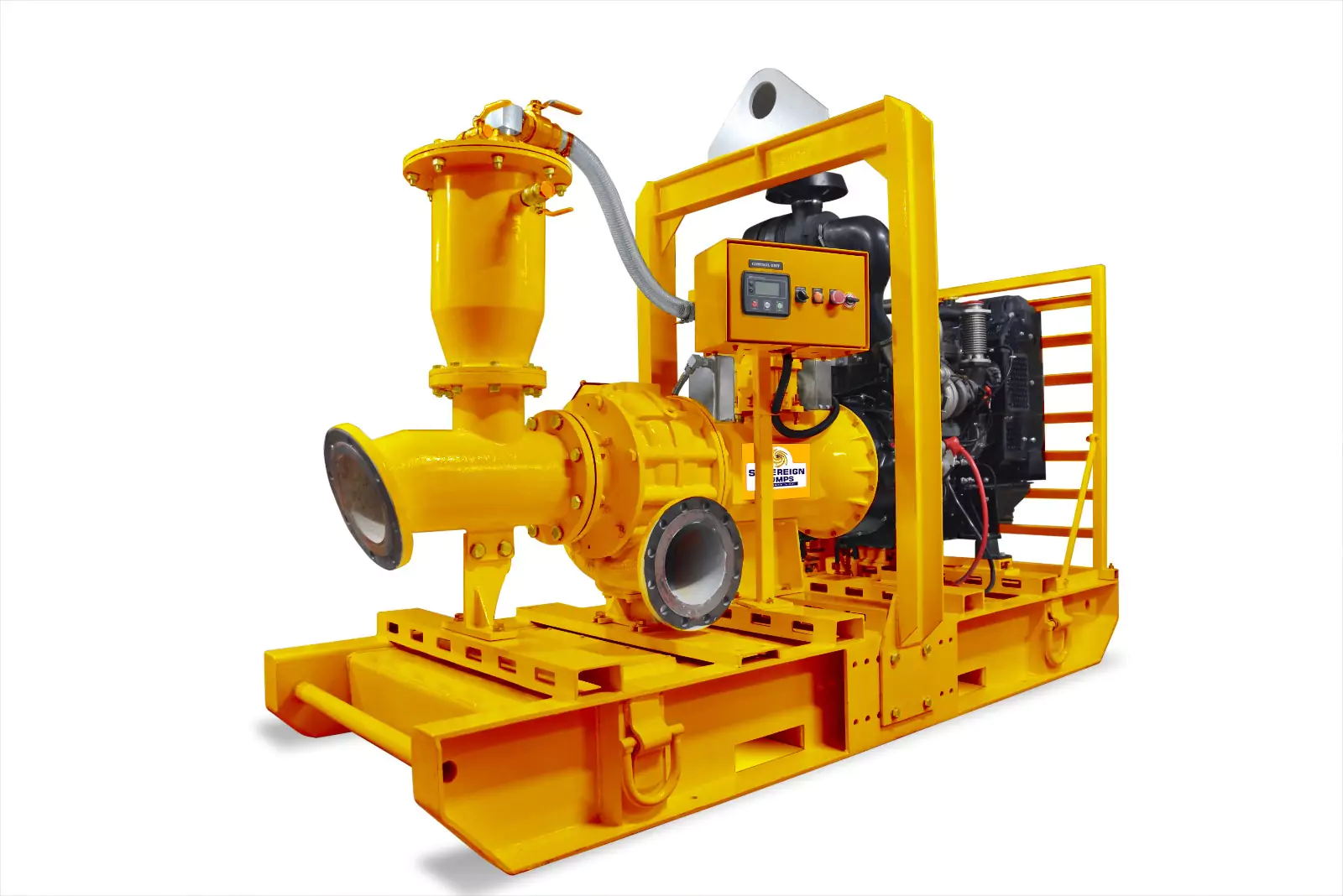

EDP-DP-6

Technical specs

Suction Connection 150 mm / 6 inch Delivery Connection 150 mm / 6 inch Solid Handling 75 mm / 3 inch Max. Head / Max. Flow 48 mtr / 500 m3/hr Engine Bell Housing SAE3 / SAE1 Engine Fly Wheel 10 inch / 14 inch Shaft Diameter 70 mm Max. Impeller Diameter 356 mm Priming 60 CFM / 800 RPM Best Efficiency Point Head and Flow 34 mtr / 375 m3/hr

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-4

Technical specs

Suction Connection 150 mm / 6 inch Delivery Connection 100 mm / 4 inch Solid Handling 75 mm / 3 inch Max. Head / Max. Flow 52 mtr / 250 m3/hr Engine Bell Housing SAE3 / SAE1 Engine Fly Wheel 10 inch / 14 inch Shaft Diameter 50 mm Max. Impeller Diameter 275 mm Priming 60 CFM / 800 RPM Best Efficiency Point Head and Flow 40 mtr / 165 m3/hr

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-250 x 200 - 400 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-250 x 200 - 315 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-200 x 150 - 315 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-200 x 150 - 400 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote

Diaphragm Pump Priming

EDP-DP-150 x 125 - 400 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote

Diaphragm Pump Priming

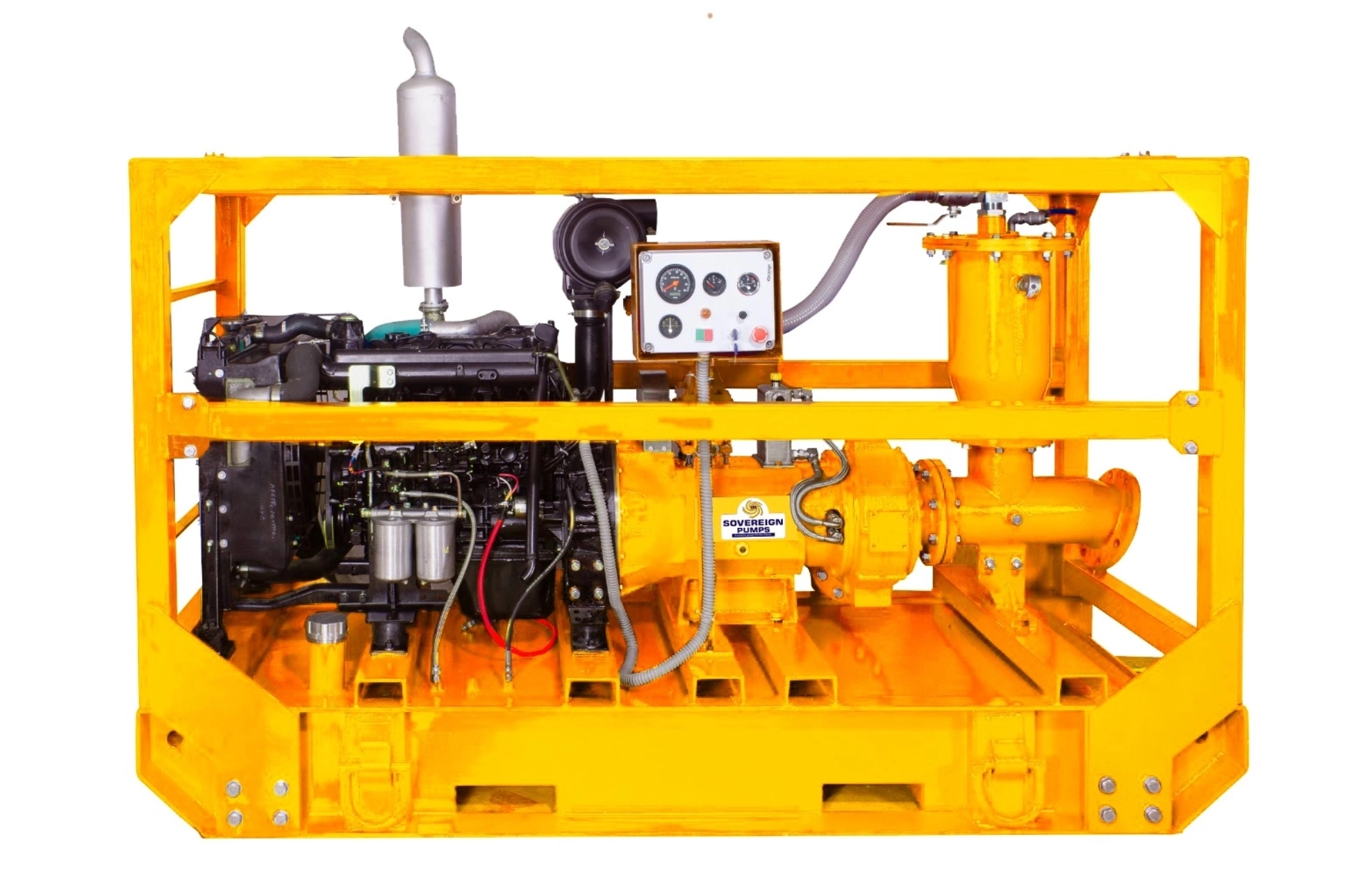

EDP-DP-125 x 100 - 400 H

All Wet Ends: SG 500/7 Impeller: SS316L Shaft: SS-431 Diaphragm Pump Single: 50 CFM For Electrical Driven: Galvanized Frame

Technical specs

SS316L: All Wet Ends Duplex Steel: All Wet Ends Nickel-Aluminum-Bronze: All Wet Ends for Sea Water Application Skid: Road Trailer, Site Trailer, Closed Enclosure

View Details Get Quote
