Vacuum Pump Priming

Diesel-Driven Vacuum Pump Priming Systems

Vacuum pump priming is useful for applications where the pump needs to operate from the surface and suction conditions can make conventional priming difficult.

By helping remove trapped air from the suction system, the vacuum arrangement supports faster pump preparation and reduces the need for repeated manual priming.

These systems are particularly useful for large-scale dewatering and drainage applications where pumping conditions can change frequently.

Our Vacuum Pump Priming Range

EDP-VP-4x4

The EDP-VP-4x4 is powered by a 25 HP engine and has a listed head capacity of up to 45 metres and discharge capacity of up to 475 m³/hr. It has a 100 x 100 mm suction and delivery size with solid-handling capacity up to 12 mm.

EDP-VP-6x6

The EDP-VP-6x6 comes with a 41 HP engine and is listed with up to 45 metres of head and 475 m³/hr discharge. It features 150 x 150 mm suction and delivery connections and can handle solids up to 18 mm.

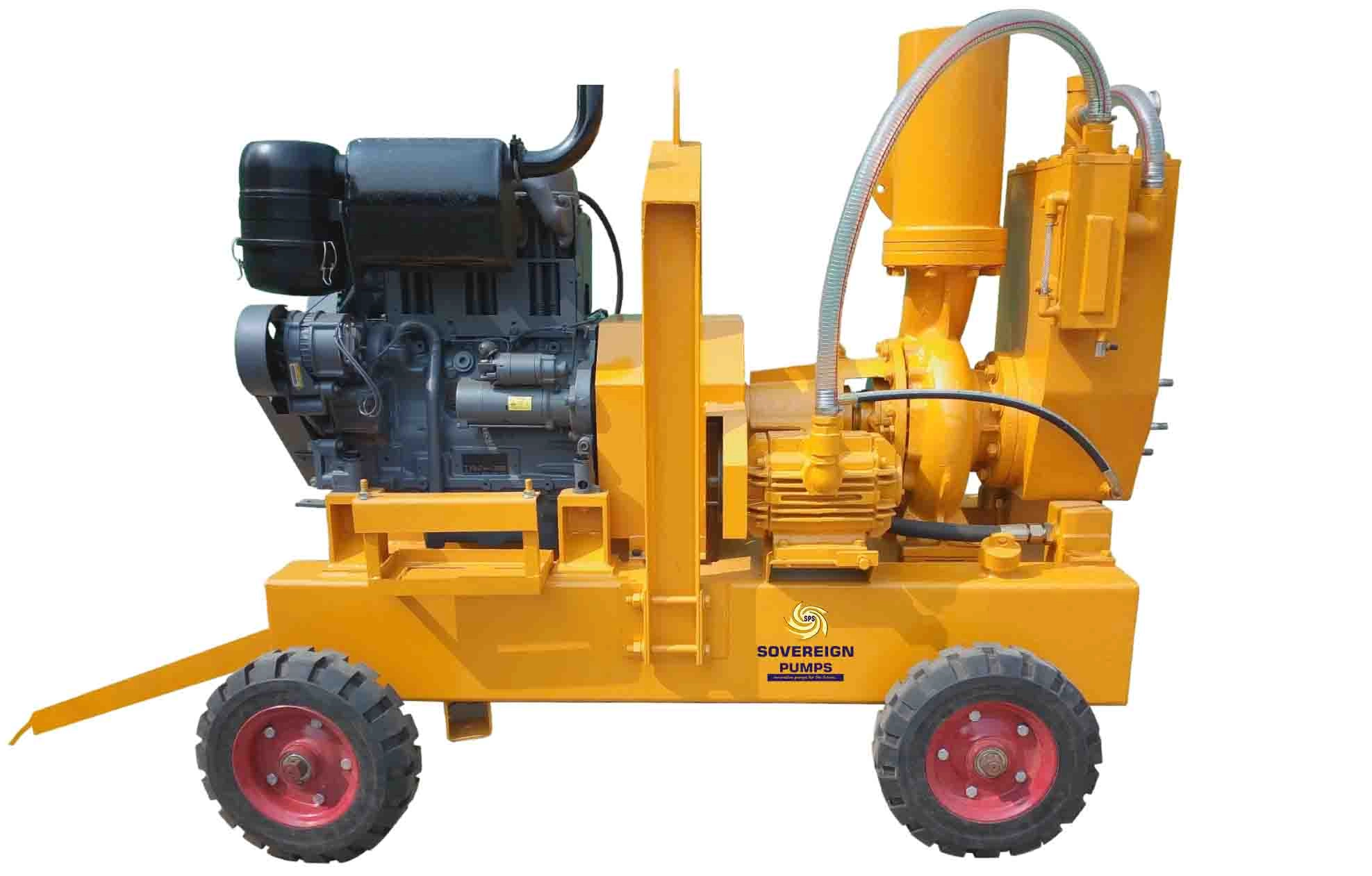

EDP-VP-8x8

The EDP-VP-8x8 is equipped with a 56 HP engine and offers up to 37 metres of head and 770 m³/hr discharge. It has 200 x 200 mm suction and delivery connections and solid-handling capacity up to 20 mm.

EDP-VP-12x12

The EDP-VP-12x12 is the largest model currently listed on the page. It uses an 85 HP engine and provides up to 65 metres of head with discharge capacity up to 850 m³/hr. The model has 250 x 250 mm suction and delivery connections and can handle solids up to 20 mm.

Where Are Vacuum Priming Pumps Used?

Vacuum pump priming systems can be used in a wide range of demanding pumping conditions, including:

• Construction dewatering
• Quarry and mining applications
• Tunnel dewatering
• Ground excavation
• Heavy sludge and slurry pumping
• Sewage networks
• Pipeline applications
• Storm-water runoff
• Flood-water dewatering
• Municipal drainage
• Dam drainage
• Bridge drainage
• Marine applications
• Stream diversions

The suitable model depends on the required flow, head, suction conditions, solids content and discharge arrangement.

Why Use Vacuum Pump Priming?

A vacuum priming arrangement can be useful when a surface-mounted pump has to lift liquid through a suction line before normal pumping begins.

Key benefits include:

• Helps establish suction before pumping
• Suitable for surface-mounted pumping systems
• Useful for difficult suction conditions
• Supports large-volume dewatering
• Suitable for solids-laden liquids
• Available with diesel-driven configurations
• Useful for construction and emergency drainage applications

Choosing the Right Vacuum Priming Pump

Choosing a vacuum priming pump should be based on the complete operating requirement rather than engine power alone.

Important factors include:

• Required flow rate
• Total head
• Suction lift
• Suction and delivery pipe size
• Solid size in the pumped liquid
• Type of liquid
• Operating temperature
• Site and installation conditions

For example, the listed models range from 475 m³/hr to 850 m³/hr in maximum discharge capacity, while their head capacities vary by model.

Why Choose PATNI PUMPS?

PATNI PUMPS LLP is the marketing partner of Sovereign Pumps and supports pumping requirements across dewatering, STP, ETP and other industrial applications. The company brings more than 50 years of experience in pumps and motors to its pumping solutions.

For a vacuum priming system, correct sizing is important because suction conditions, flow, head and liquid characteristics all affect pump performance.
